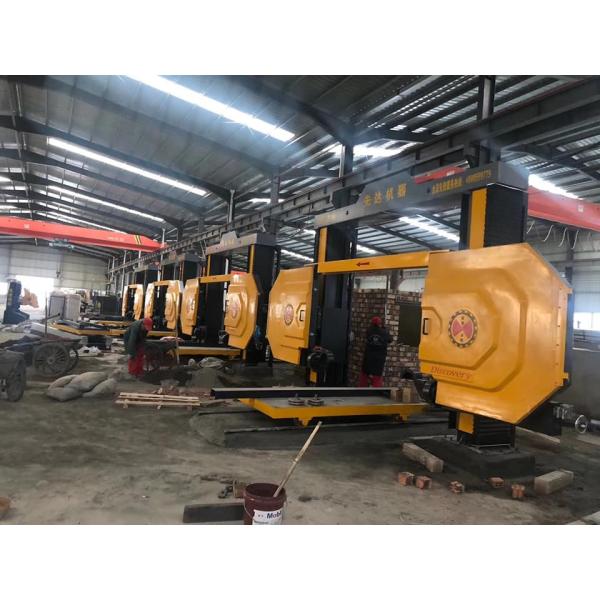

4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite

Name: 4Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble Granite
Brand: Xianda Machinery
Price: 1 USD

Buy cheap 4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble , Granite product

Brand Name : Xianda Machinery

Model Number : Discovery 4-2000/2500/3000

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Place of Origin : Jinjiang, Fujian, China

MOQ : 1

Price : To Be Negotiable

Payment Terms : L/C, D/A, D/P, T/T, ,

Supply Ability : 1000 Sets/Year

Delivery Time : 30 days

Packaging Details : Plastic Package, Suitable For Sea Transportation

Outline Dimension : 6500*6300*3800mm

Water Consumption : 6m3/H

Power : 5.5kW

Hs Code : 84641090

Application : Industrial MARBLR,GRANITE Cutting,STONE Cutting

Origin : Fujian, China

Gross Motor : 11kw

Key Selling Points : Competitive Price, Automatic,row material

Max Processing Size : 3000*2500*1500mm

Wire Diameter : 0.6-1.8mm

Automation : Automatic CNC

Wire Length : 15.7m

Control Type : CNC

Cutting Length : 20-60m

Diameter : 8.5mm to 11.5mm

Cutting Precision : ±0.01mm

Spindle : 15KW

Trolley Size : 1400*2500mm

Adjustment Distance : 450mm

Rated Power : 2.2kw

Contact Now

4-Axis CNC Diamond Wire Saw Machine With Automatic Control System For Marble, Granite

Revolutionize Your Cutting Process with Our Advanced 4-Axis CNC Diamond Wire Saw Machine. In the dynamic world of industrial cutting, precision and efficiency are the keys to success. Our machine is engineered to redefine these standards, offering unparalleled performance for stone cutting applications.

Key Features and Performance

Precision CNC Control: State-of-the-art 4-axis CNC system enables highly accurate cutting with minimal errors (±0.01mm precision)
High-Speed Cutting: Powerful 15KW spindle and optimized wire drive system for efficient production
Versatile Applications: Handles marble, granite, and other stone materials with maximum processing size of 3000×2500×1500mm
Durable Construction: Robust frame (6500×6300×3800mm) with advanced cooling system for industrial reliability
Automatic Operation: CNC control with adjustable wire speed (20-40m/s) and wire tension

Technical Specifications

Model	Discovery-2000	Discovery-2500	Discovery-3000
Max processing size (mm)	2000×3000×1500	2500×3000×1500	3000×3000×1500
Wheel diameter (mm)	1600	1600	1600
Trolley size (mm)	1400×2500	1400×2500	1400×2500
Wire speed (m/s)	20-40	20-40	20-40
Outline dimension (mm)	6800×6300×3950	7800×6300×3950	8800×6300×3950

Detailed Attributes

Power	5.5kW
Water Consumption	6m³/H
Wire Diameter	0.6-1.8mm
Wire Length	15.7m
Cutting Precision	±0.01mm
Adjustment Distance	450mm

Industrial Applications

Precision cutting of marble, granite, and natural stone slabs

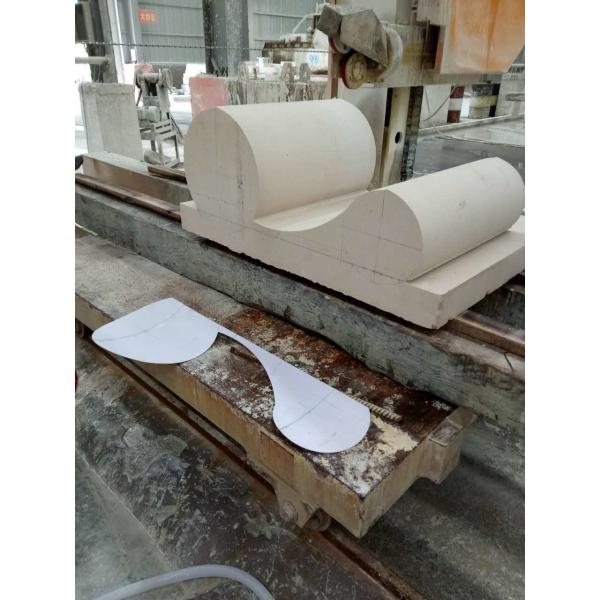

Block profiling and custom stone fabrication
Industrial stone processing for construction and architectural applications

Manufacturer Advantages

Factory Direct Pricing: Competitive pricing without middleman markup

Customization Options: Tailored solutions for specific cutting requirements

Comprehensive Support: Installation, training, and after-sales service

Quality Assurance: ISO-certified manufacturing and rigorous testing
